Studio 66LCR
-
Detail
_HDI_Waveguide-Web-1920x640.png?sw=904&sh=560)

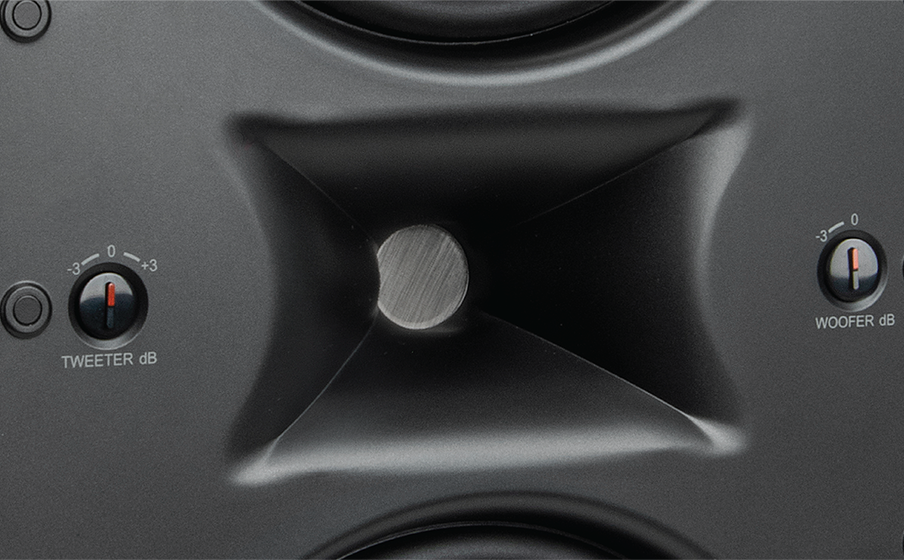

1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
_Polyplas_Cone-Web-1920x640.png?sw=904&sh=560)
Dual 6.5" (165mm) Polyplas® woofer
_Level_Adjustments-Web-1920x640.png?sw=904&sh=560)

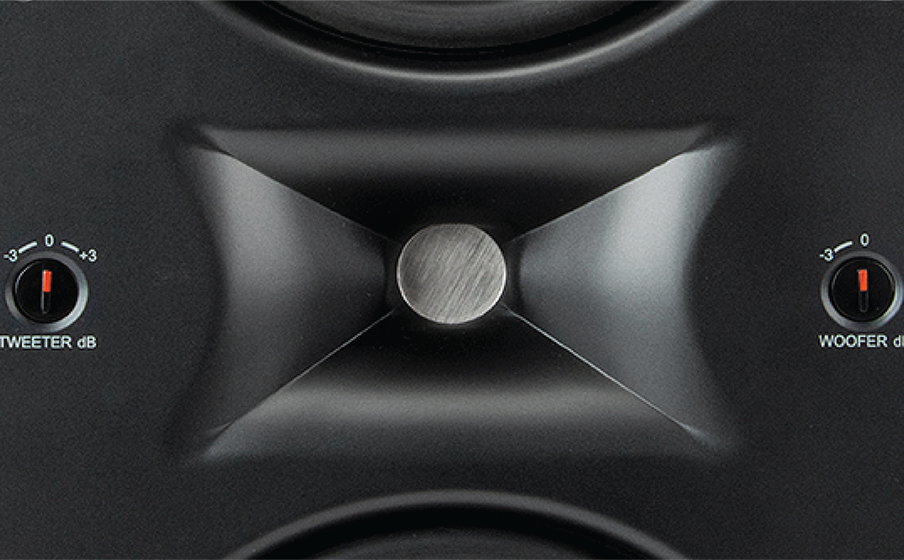

High frequency level adjustment and Low Frequency boundary compensation
Features
_Network-Web-500x500.png)
Premium air-core inductors and mylar capacitor crossover network components
DogLegMounting-Web-500x500.png)

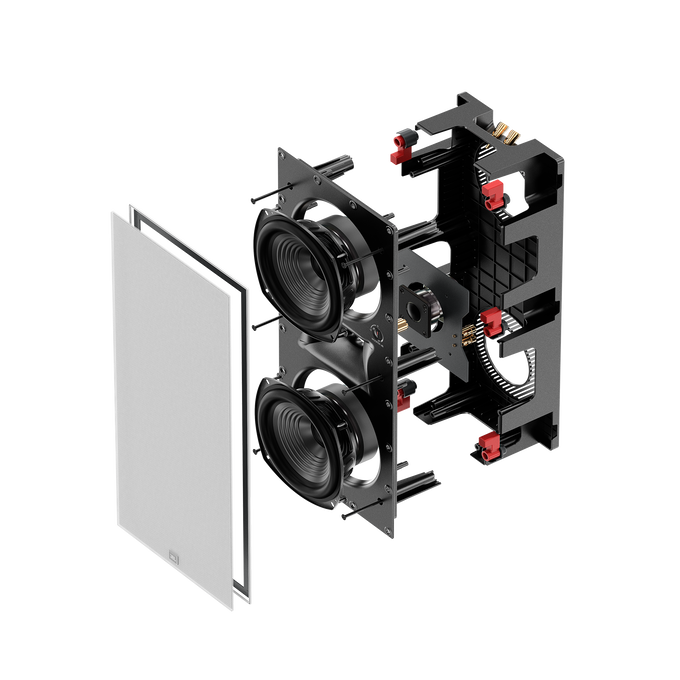

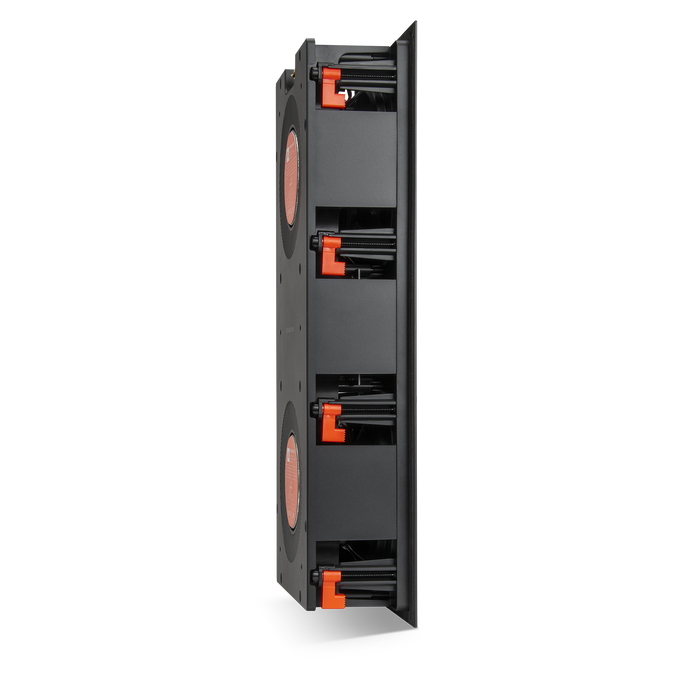

Dog Leg installation system for quick and easy installation
ZeroBezelGrille-Web-500x500.png)
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
News and Reviews
Learn MoreSpecs & Downloads
Item#: JBLS666LCR
EAN: 6925281997990

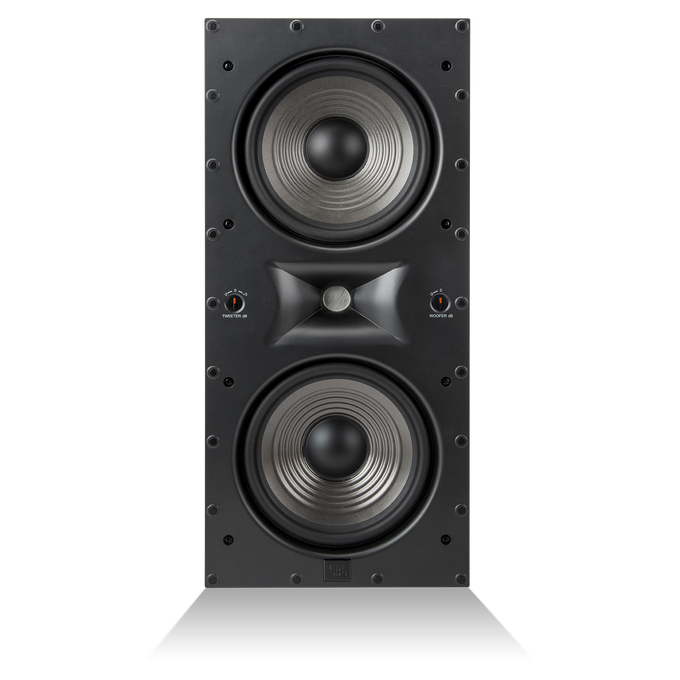

Dual 6.5" (165mm) 2-way In-Wall Loudspeaker
With dual 6.5" (165mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide the Studio 66LCR is perfect for front channels in any home theater. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 66LCR visually discrete so they blend into the walls seamlessly.
General Specifications
- High Frequency Transducer
- 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
- Low Frequency Transducer
- Dual 6.5" (165mm) Polyplas® woofer
- Nominal Impedance
- 6-Ohm
- Sensitivity (2.83V@1m)
- 91dB
- Power Handling
- 50W RMS (200W Dynamic)
- Recommended Amplifier Power
- 50 - 70W
- Frequency Response
- 45Hz - 20kHz
- Crossover Frequency
- 2.5kHz
- Grille Dimensions (HxW)
- 8.2" x 18.6" (209mm x 473mm)
- Cutout Dimensions (HxW)
- 7" x 17.4" (180mm x 443mm)
- Mounting Depth
- 3.74in (95mm)
-
