Studio 6 Theater
-
Detail
_HDI_Waveguide-Web-1920x640.png?sw=904&sh=560)
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
_Polyplas_Cone-Web-1920x640.png?sw=904&sh=560)
Quad 5.25" (130mm) Polyplas® woofers
_Level_Adjustments-Web-1920x640.png?sw=904&sh=560)

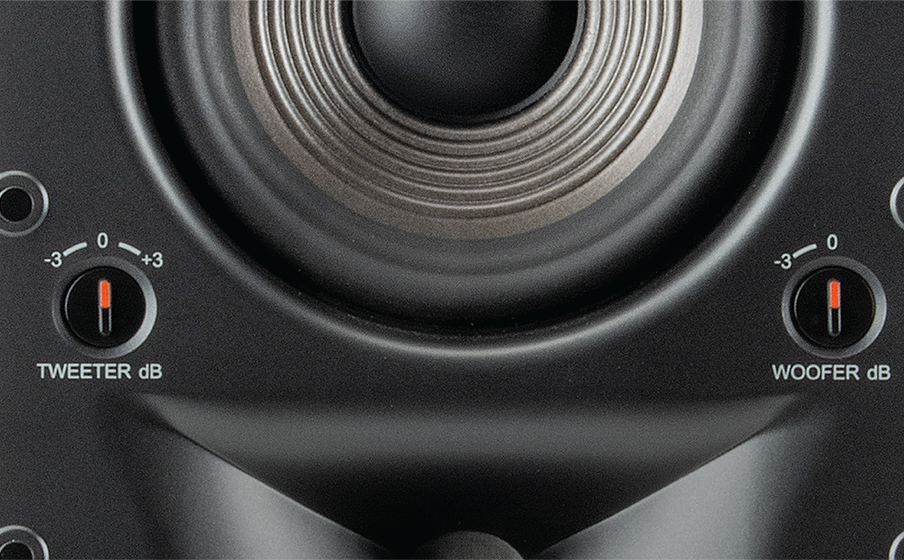

High frequency level adjustment and Low Frequency boundary compensation
Features
_Network-Web-500x500.png)
Premium air-core inductors and mylar capacitor crossover network components
DogLegMounting-Web-500x500.png)
Dog Leg installation system for quick and easy installation
ZeroBezelGrille-Web-500x500.png)
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
News and Reviews
Learn MoreSpecs & Downloads
Item#: JBLS6THTR
EAN: 6925281998010
Quad 5.25" (133mm) 2-way In-Wall Loudspeaker

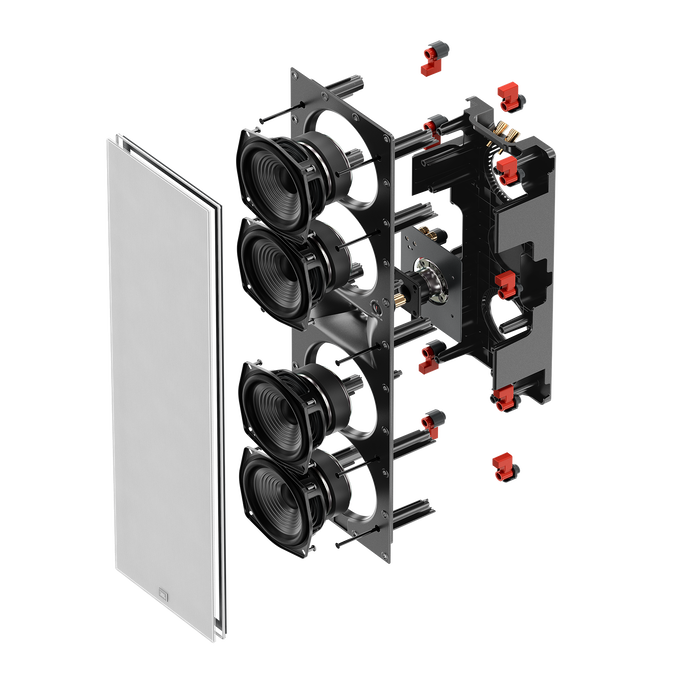

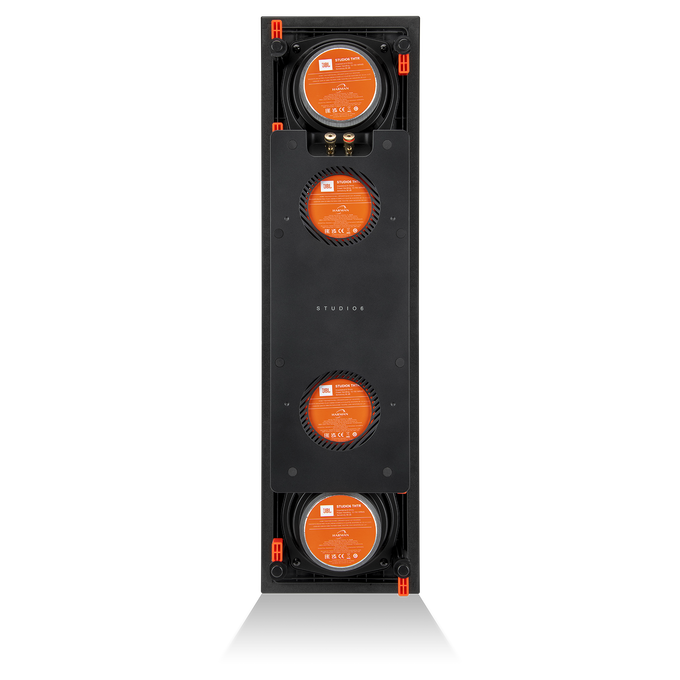

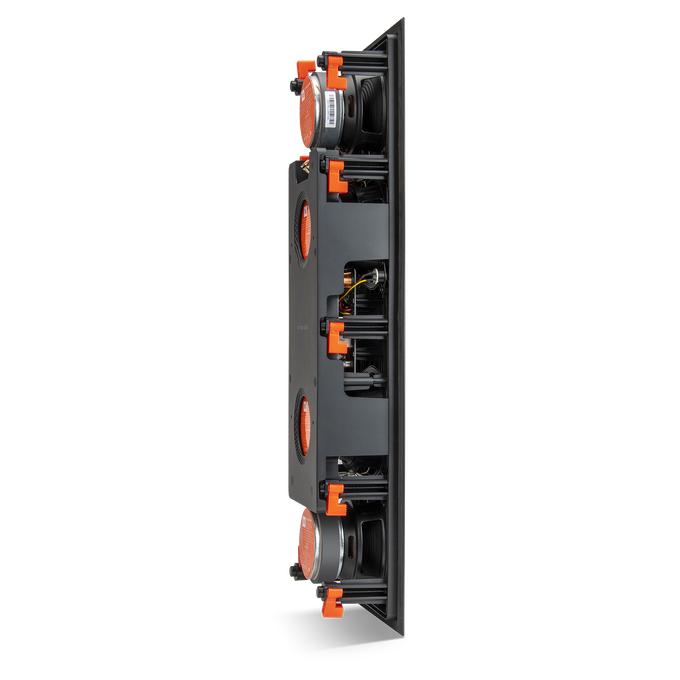

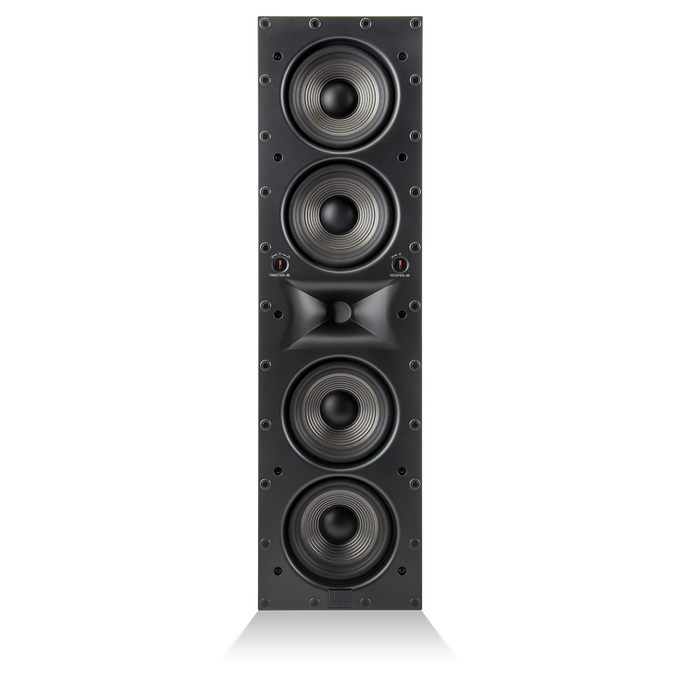

For next level home theater the Studio 6 Theater utilizes quad 5.25" (130mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide to deliver home theater at its best. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the Studio 6 Theater visually discrete so they blend into the walls seamlessly.
General Specifications
- High Frequency Transducer
- 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
- Low Frequency Transducer
- Quad 5.25" (130mm) Polyplas® woofer
- Nominal Impedance
- 6-Ohm
- Sensitivity (2.83V@1m)
- 96 dB
- Power Handling
- 100W RMS (400W Dynamic)
- Recommended Amplifier Power
- 50 - 150W
- Frequency Response
- 65Hz - 20kHz
- Crossover Frequency
- 2.5kHz
- Grille Dimensions (HxW)
- 7.4" x 26.5" (188mm x 674mm)
- Cutout Dimensions (HxW)
- 6.2" x 25.3" (157mm x 642mm)
- Mounting Depth
- 3.74in (95mm)
-
